Head and Shoulder Pattern in Gold Price

13 April 2013

Introduction

The price of gold plunged 5% Friday to its lowest level in three years. Some said it was due to countries like Cyprus dumping gold to pay for the debts;  other said that the economists were increasingly worried about the economy's forward momentum heading into Spring.  Whatever the reason,  lets examine Gold's technical to see where it would be heading.

The Head and Shoulder Pattern

One of the very common pattern in stock analysis is head and shoulders pattern.  It is a reversal pattern and it is most often seen  in uptrends.  It is quite reliable pattern when it is found in an uptrend.

Such a pattern will see buyers coming in to form the left shoulder and the neckline with fairly large volume.   As sellers sell at the highs and push down the price towards the neckline to form the left shoulder,  the buyers return to push up the price which may not necessary be the new high;  however,  the volume will suffer.   When the right hand shoulder is completed and touches the neckline,  sellers  will begin the dumping process with price falling sharply at large volume to complete the pattern. The price may test the neckline as it form the head and shoulder pattern.

After having broken the neckline,  the selling will not stop until a target is reached and this target is found by measuring the distance from the neckline to the top of the head or sometimes,  the shoulders.  When the target is reached,  the price will re-test the neckline.

Is this Pattern Found in Gold Price?

Gold price has developed exactly the same head and shoulder pattern after yesterday's fall except the head is much smaller in size compare to the left and right hand shoulder.

It is likely for Gold to head lower until the target price is reached

Update 1: 18 May 2013

Gold has failed to break the neckline in its attempt recently and now has broken the bear flag resistance of 130.3 except that the volume at the break was low.   The full STO is now at oversold region and the RSI is set for a rebounce.   However,  the ADX (not shown) is telling us  that there may be accelerated declines ahead.  The price development next week will determine the direction.

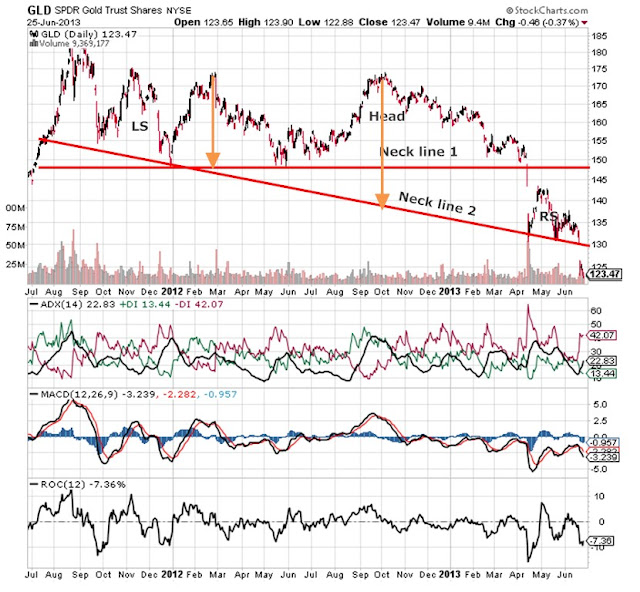

Update2: 26 June 2013

Gold has broken down again after forming a second neckline which does not usually happening.  The market might not be convinced that the correction was done and there was another opportunity for a second head and shoulder (H&S) to be formed.    This second H&S would appear to set Gold price back further down and have a target price which is less than $1,000/=

Update 3 :  18 August 2013

Gold price broke neckline 2 on around 13 August 2013 on lighter than expected volume.  The breaking down of neckline 2 could be QE tapering related.  As the volume is low during the break up of neckline 2 ,  there is a likelihood of Gold may revisiting neckline 2 in near future if the QE tapering news is reversed.

What Size Aquarium Chiller?

11 April 2013

Introduction

Sizing a chiller for the Aquarium can be a difficult task as the tanks come with various dimensions and sizes;  also,  some aquarium set up can be so different that one would have to work out the detailed heat gain and loss to size a chiller.  This article will give 2 methods on sizing a chiller.

How to Select the Right Size Chiller

Many aqua and reef enthusiasts pick up some knowledge here and there. Some uses the one size larger rule and some just blatantly use figures provided by the manufacturers. Some suggested that chiller should be large enough so that it won’t run longer than half an hour on each start. Some preferred shorter operating time citing lesser wear on the compressor.

The correct chiller sizing should depend on heat loads transmitted into or out of the tank. There are basically the following heat losses/gains that can be found in an aquarium tank;

1) The heat gain from the light fittings
2) The heat gain from the pump or in-line filter
3) The heat gain transmitted through the exposed glasses
4) The heat gain from the occupants
5) The heat gain through surface and the heat loss from evaporation
6) Others heat gain such as those from internal circulating pumps, wave makers etc

As the calculation involves complicated thermodynamics and air conditioning engineering, it would not be discussed here. Those interested can read up this article.

Most enthusiasts just use rules of thumb. The thumb rule of using one size larger appear to be more appropriate because the manufacturer’s guideline often did not consider the extra heat load from the other equipment such as lights, pumps etc; also, the chiller will age and lost efficiencies. Then one might want to add more equipment such as more pumps in future. Some manufacturers could also over-rate their chillers.

Method 1:  Using JBJ Website

JBJ has a website that one can use to size various chillers.

Please note the following when using the website:-
a) For metric to imperial conversion, use the formula degree F= degree C * 9/5 +32 and 1 US gallon = 3.8 litres;
b) Remember that actual water temperature refers to maximum water temperature which should be around 30C or 87F for Singapore;
c) A 40 watts fluorescent fitting will give 50 watts of heat; 40 watts for the lamp and 10 watts for the ballast (25% for magnetic ballast, 20% for electronic ballast and 15% for LED driver);
d) Assume full tank volume and not actual water volume to be safe.
e) It is still good to up one size larger after the calculation.

The term horsepower (HP) is often used for sizing a chiller. One can take that 1 HP=2800 watts of cooling power. Divide that by COP of the chiller (1.3 for freon and 0.55 for Peltier), one should get roughly the power inputs in electricity watts.

Method 2:  Using Table Selection

The following were assumed when working out the table:

1.  The Bulkhead heat load is around 0.6 watts per US gallon;
2.  The pump heat load is around 0.5 watts per US gallon;
3.  The overhead lighting load is around 4 watts per US gallon;
4.  The maximum temperature across the glass is 5.5 degree C

The manufacturers appear to suggest the chiller should be sized such that the chiller should cycle on 15-20 minutes an hour for chiller to run about 6-8 hours per day. Depending on the setting of the temperature and the water flow rates, it may be normal for chiller to run for 1 hours and stay off for 2-3 hours before the next cycle.

Other Relevant Sites
tinyurl :  https://tinyurl.com/ybyepw7p
