Xiaomi TV or Box Insufficient Memory Problem

14 Apr 2018

Xiaomi TV or box often gives out warnings about insufficient memory and causes TV or box to cease operation or having read/write errors etc. This article will explain why and how to avoid this.

What type of Memories?

ox Insufficient Memory Problem

Xiaomi TV or box has  2 type of memories.  For example,  Xiaomi TV4 has  2 GB Random Access Memory (RAM)and 8 GB storage of embedded Multi-Media Controller (eMMC) or flash memory.     The latter consists of  both a flash memory and a flash memory controller integrated in a memory chip.

Where they Use?

RAMs are mainly used for storage of Operating System (OS), current application programs and data so they can be quickly reached by the microprocessor. whereas eMMCs are used for storage of third-party apk files or its installation cache files.  It is also used to store the user data and cache and some applications that do not need instant access by the microprocessor.

Why Insufficient Memory?

When one downloads and installs too many third party apk files or the system generates too many cache files,  it will clog up the limited memories

How to Avoid?

1. Regularly use memory cleaners such as One Key Cleaner to constantly clear up the unnecessary data generated by the system while it is working;

2. Flash and store only apks that use as little memory as possible;

3. Timely delete unnecessary apks

What is the Official Xiaomi Cleaner?

The official cleaner is called “TV Manager”.   Unlike many other cleaners,  this cleaner has the following  functions

1. Optimise the memory space
2. Boosting Internal Memory
3. Gabbage Cleaning
4. Uninstall APKs
5. Deep cleaning
6. USB thumbdrive installation
7. Useful APKs
8. Internet Speed Test
9. Network Testing

The most commonly used functions are 1,2 and 5 for cleaning purposes

These function are explained as follows

 What are the Alternatives?

TV Manager is useful but it does not have automatic cleaning function that will clean the memory at regular intervals.   A 3rd party cleaner designed by  Shafa called “一键清理TV版”  or One Key Cleaner TV version can be viewed from here. .   It is a useful small program always running in the background.  It  will clean the memory in half hourly or other interval.

Xiaomi TV Audio Output Connections

9 April 2018

1) The Hard Wiring Connection

2) Blue Tooth  Connection
3) More about SPDIF and  HDMI (ARC)
4) Why HDMI (ARC) Not Working

Xiaomi TV or MiTV  is originally a TV manufactured in China for Chinese market.  Plenty of users has encountered problems;  for example,  playing YouTube 4K movies or  trying to install Google Play Store.  This is because Xiaomi has omitted the supporting features not commonly found in Chinese market to cut down cost.  One of such features is the old type of analogue video and audio output ports.

How Many Ways?

There are 2 ways to connect to MiTV's audio system

1.  Hard Wiring Method
2.  Blue Tooth

back to top
1.  Hard Wiring Method

Xiaomi TV has only digital ports;  SPDIF is the only audio output port available.  Alternatively, one could use one of the HDMI that has Audio Return Channel (ARC) for audio connection.  This is provided the audio receiver also has an HDMI with ARC connection;  otherwise,  one would have to use an HDMI ARC adaptor which allows signal to be converted to other audio format.

a)  What is SPDIF?

SPDIF stands for Sony/Philips Digital Interface.  It is a type of digital audio connection used in consumer audio equipment.  Unlike ordinary analogue audio connection,  SPDIF  signal is transmitted digitally over either a coaxial cable or a fibre optic cable called TOSLINK connectors.   Most modern amplifiers will have SPDIF connectors;  older amplifiers only has analogue connections.

b)  What to do for Amplifiers without the correct SPDIF connection?

Xiaomi TV only has a co-axial type of SPDIF connection.   If one’s amplifier has only TOSLINK port,  one will have to buy a Co-axial RCA to Optical TOSLINK SPDIF converter as shown



However,  if one’s amplifier has only analogue port such as composite video/audio inputs,  one will need to buy a Digital to Analogue audio converter with RCA connectors as shown

 c)  Connecting up

In addition to the above converter,  one would need to have the right type of cables

1.   For connection between Xiaomi TV and the converter -  A length of Co-axial digital RCA cable

2.  For connection between the Converter and one's amplifier - either a TOSLINK cable or a set of RCA audio cable depending on one's amplifier set up

d) Any Difference between the Ordinary and Digital Co-axial Cable?

They are all having the same type of RCA connectors. 　The difference is in the quality of the cables.  The digital cable has better grade of cable and RCA connector.  However,  some claimed that there was no appreciable difference for a short length of cable connection.

e)  Connection using HDMI ARC

This audio connection is more commonly used by audiophile who often seek perfection in sound quality as it is one mean of sending true Dolby sound surround from the TV to the sound system.  For more information about how to set this up,  please refer to this article.

back to top
2)  Blue Tooth

a)  Type of Blue Tooth　

This is the most modern way of audio connection that is being used nowadays  in almost every new sound system.   The connection is done by pairing between 2 devices for example,  the TV and the phone or the speaker system.   Up to seven or eight devices can often be paired but usually,  one 2 devices can be paired together.

MiTV has its own built-in audio bluetooth transmitter which will allow audio connection to the speaker or headphones through a bluetooth receiver such as these receivers

There are several types of blue tooth receivers available in the market.  They differ only in the way they get their power,  some has its own rechargeable battery while others has a USB charger.    Although Bluetooth standards are always backward compatible,  it is preferable to get receivers that are using the same Bluetooth standard as the TVs;  in the case of MiTV,  it is Bluetooth 4.2.

b)  Connecting up

Connecting the Bluetooth device is relatively easy.  All one has to do is to pair up the devices.  To pair up,  fire up [Setting] and select [Device and Bluetooth],  MiTV will search for available Bluetooth device in the room.  If the Bluetooth device does not show up,  try turning on the Bluetooth device as it may be switch off by default.

Other Articles About Xiaomi TV or Box

Can be found here

TinyURL : https://tinyurl.com/yafwgedf

A Userful Cleaner for Xiaomi TVs or TV Boxes

4 Apr 2018

Xiaomi TV or TV box has limited memory and quite often,  it's operation will slow down when its memory is clogged up;  sometimes,  the TV may stop to operate altogether until one cleans up the memory manually.  A method where one’s TV or TV boxes can be cleaned automatically in the background is presented here;  also,  it will not touch the user data so one did not have to re-enter all the data again and again.

What’s Needed

1.    An Apk called “一键清理TV版”  or One Key Cleaner TV version which can be downloaded here or  directly from the apps maker from here.  One could also download the APK directly from shafa apps.

Note:  Some browsers might pick this file with virus warning but the file has been scanned using McAfee to be free of virus.

2        Some trial and error effort

Step by Step

1.  Download and install the APK

Fire up the APK through App Store as shown,  one would be greeted by this screen immediately while the APK proceeds to clean the memory

2.     It will show the following screen when the cleaning process is completed.

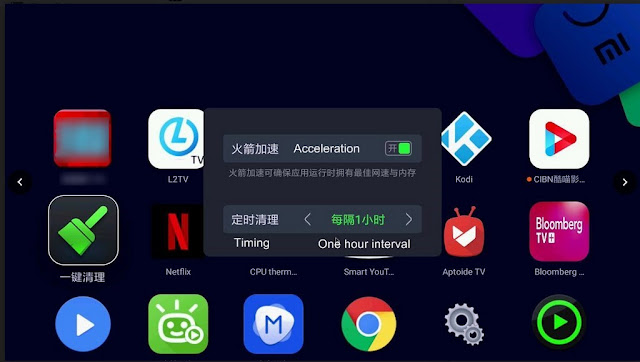

3.    Click the green button which will set the automatic cleaning process;  one would be greeted by the following screen

Using the remote control,  click the top button to accelerate the cleaning process,  then select and click the bottom button to set the timing for the cleaning

4,  The TV or box is now set for automatic cleaning every one hour in the background while one is watching the TV

Other Articles About Xiaomi TV or Box

Can be found here





Quick Screen Capture of Picture or Video in Xiaomi TV

2 Apr 2018

A feature not known to many Xiaomi TV users is the quick screen capture of picture or video while watching the movies.   This feature has 3 functions for screen cleaner,   screen capturing and screen recording。

How to Access this feature?

While watching the TV，  press “Home” button twice quickly,  one should reach to the following screen showing 3 buttons for cleaning,  screen capturing and screen video recording。

What are the Functions for the 3 buttons

1.    Cleaner :  Pressing it will clear all the screens leaving only the main menu screen and the setting screen at the top;

2.    Screen Capture :  Pressing this will capture a screen instantly and a notice will be displayed when completed;

3.    Screen Recording:  This button will record a short video of about 15 seconds,  A notice will also be displayed.

How to Retrieve the Capture Files

For some reasons,  Xiaomi doesn’t appear to have the apps for displaying the captured files.  One  will have to make use of an App called “ES File Explorer” which can be downloaded from here in Aptiode-TV.

1.  Fire up ES File Explorer once downloaded,  one should reach this screen.

2.  Select “Local” Folder and click “Internal Storage”  then scroll down the page, one would be greeted by this screen

3,  The video and screen captured files are kept in one of the 2 files called “ScreenCapture” or “ScreenRecorder”; an example is shown here.

4.  Have fun.
